Turnkey solution for your projects, one-to-one professional project management service, competitive and flexible service (for both sample and mass production)

Category：Mechanical Service
Inquiry

Honor

Company profile

801 (1).jpg
801 (2).jpg
801 (3).jpg
801 (4).jpg
801 (5).jpg

View More Products

Previous

PCB Manufacturing

Next

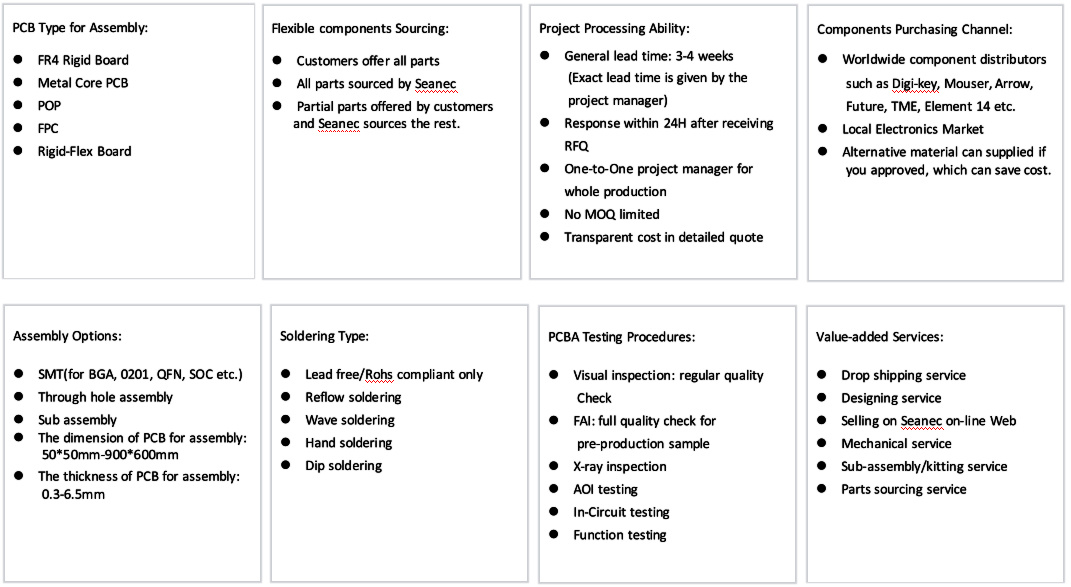

Value-added service

  • Product description

  • a

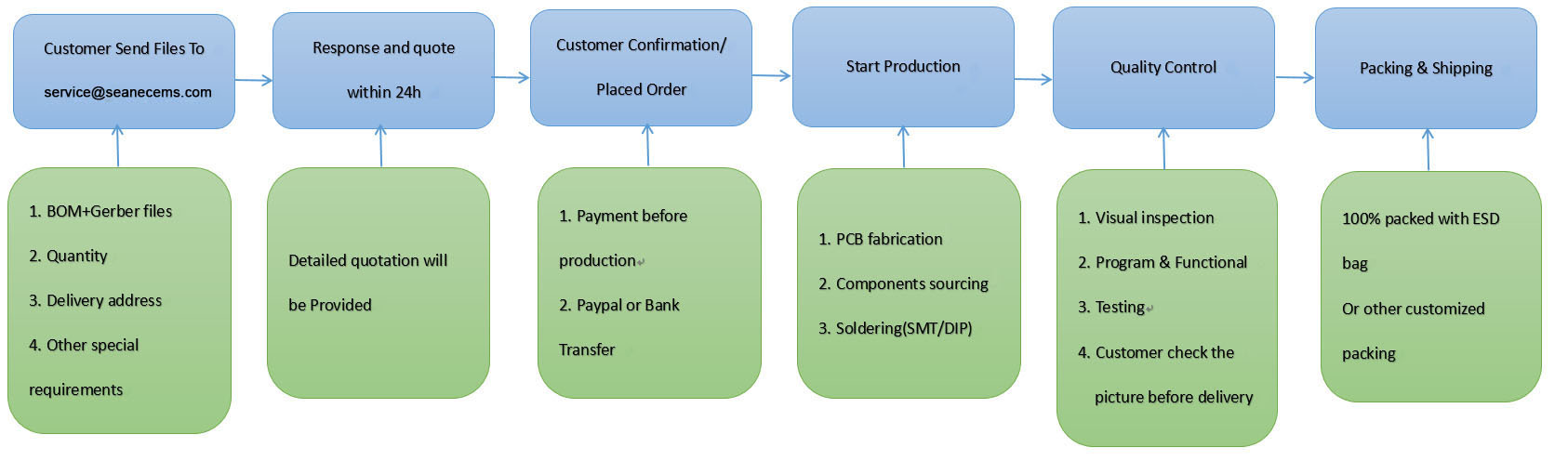

    PCB Assembly Order Flowchart



    a

    Products involved in communications, computer, medical, automotive, industrial control, consumer electronics and so on.



    1

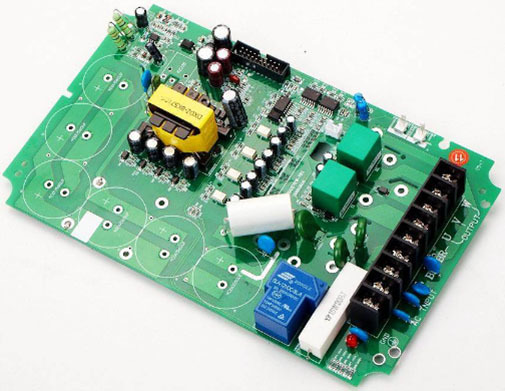

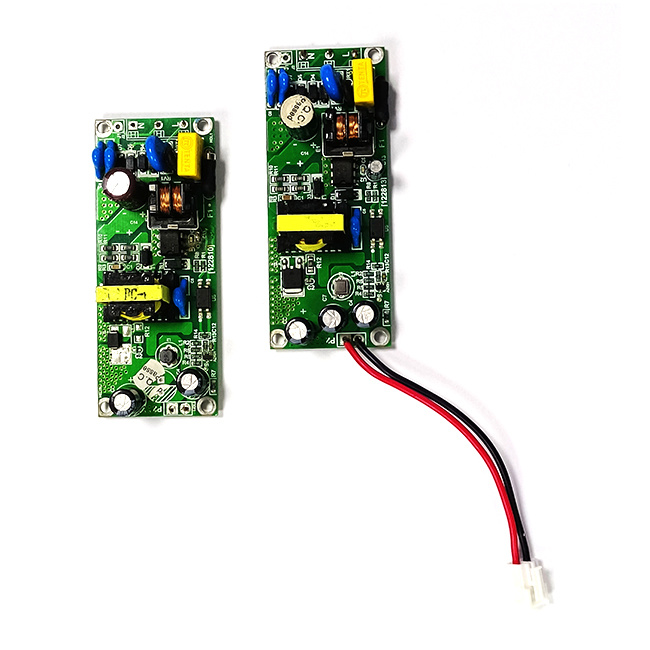

    Power Supply Board
    The size of board: 120x68mm
    Double-side reflow soldering
    Minimum package size for resistance and capacitance: 0402
    Mini pin spacing: 0.5mm
    1

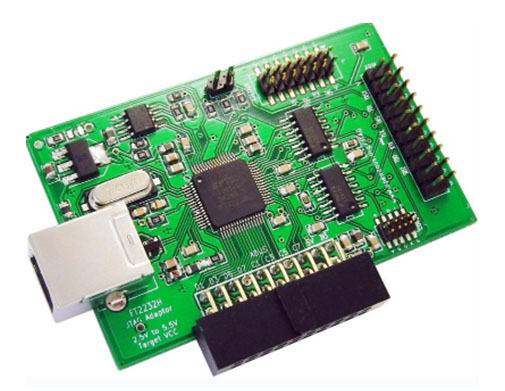

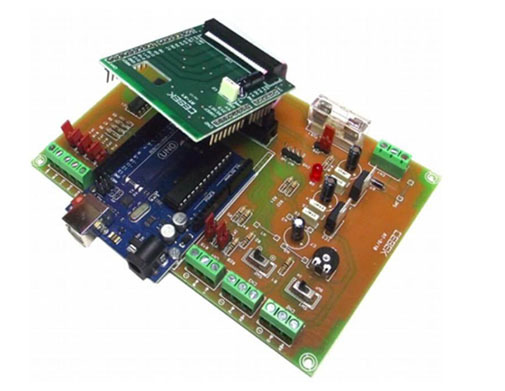

    Adapter Board
    The size of board: 110x60mm
    Double-side reflow soldering
    Minimum package size for resistance and capacitance: 0402
    Mini pin spacing: 0.5mm

    1

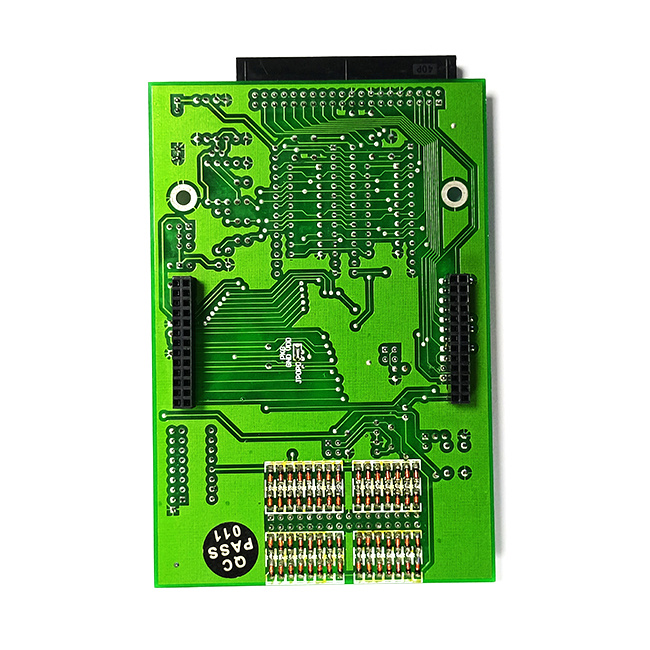

    Memory Board
    The size of board: 40x65mm
    Double-side reflow soldering
    Minimum package size for resistance and capacitance: 0201
    Mini pin spacing: 0.5mm
    1
    Consumer Electronics Board
    The size of board: 150x103.6mm
    Double-side reflow soldering
    Minimum package size for resistance and capacitance: 0402
    Mini pin spacing: 0.5mm
